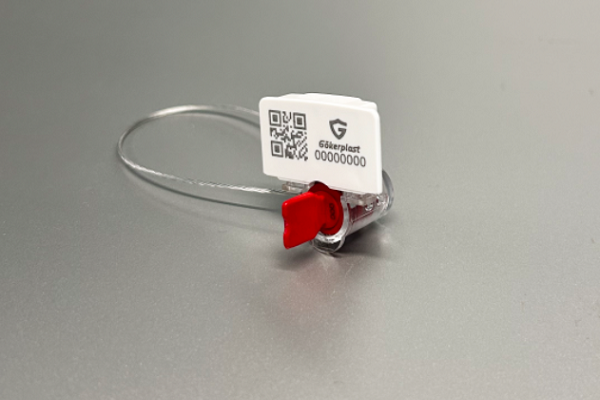

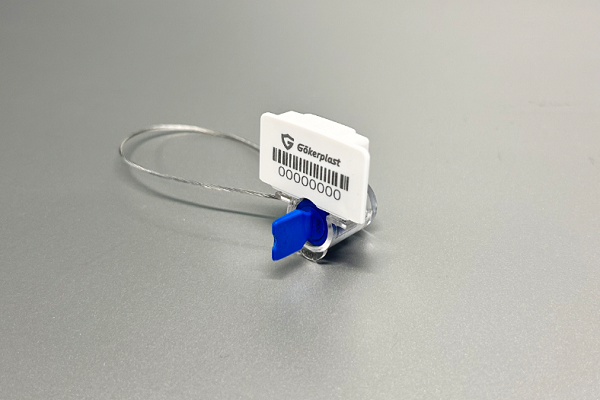

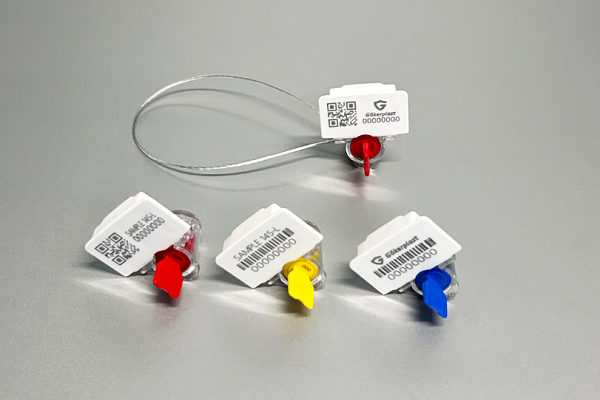

GP145 Combi Seal
Thanks to its unique design, the GP145 Combi Seal provides excellent protection against tampering, while its specially designed anchor shape allows users to apply it quickly and easily.
The marking area features an opaque white background, which ensures that barcodes/QR codes can be easily read even in low-light environments, such as meter boxes with limited light.
The polycarbonate material used offers very high strength and outstanding UV resistance, enabling the product to be used for many years on all types of meters.
This product is a popular choice among many customers for sealing meters, and it also introduces a new security solution for industries such as petroleum and chemical transportation, where product loss is often significant.
For more information about the GP145 Combi Seal, please contact our sales team.
GP145
- Made of Polycarbonate (PC) Ultra-Violet resistent body and Polyacethale (POM) coloured insert
- Unique design of anchor-type locking, provides enhanced security and great tamper-proof feature by blocking the colored rotor
- Stainless steel Ø0,63mm, Galvanised Steel Ø0,63 mm and PVC coated Steel Ø0,85 mm sealing wire options
- Requested length of sealing wire can be attached to the seal body
- Barcode or QR-Code option for mobile applications

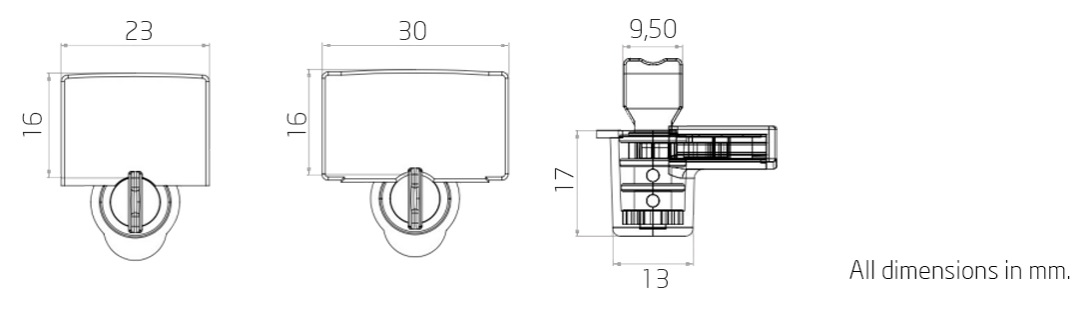

- Optional marking length, GP145 : 23mm GP145-L : 30mm
- White background flag for best contrast
- Complies with RoHS (Restriction of Hazardous Substances) Directive (EU) 2015/863 and its subsequent amendments
- Test reports available for ISO 4892 UV resistence, ISO 9227 Corrosion resistence
- Pull-apart / Tensile strength : 35 Kgf
- Working temperature : -40C / +120C
Packaging :
GP145 with 30cm wire
Box: 39x19x24 cm / 1000pcs , GW: 5,8 kg
Pallet: 80x120x207cm / 96.000 pcs
GP145-L with 30cm wire
Box: 39x19x24 cm / 1000pcs , GW: 5,97 kg
Pallet: 80x120x207cm / 96.000 pcs
- Customs Administration
- Laboratories
- Oil Transport

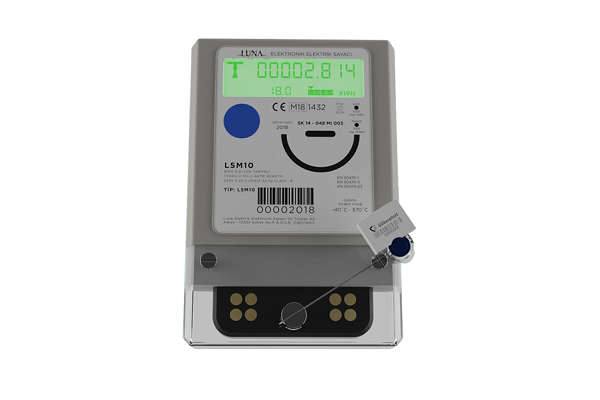

- Utility Meters
