GP140 – Combi Seal
Combi Seal is the gasket materials around the pipes and...
Combi Seal is the gasket materials around the pipes and holes around the combustion chamber of the boiler. These gasket materials are used to prevent gases from the combustion chamber from leaking into the environment.
On the other hand, Kombi seal is usually made of special gasket materials such as silicone rubber, nitrile rubber or fluoroelastomer (Viton). These materials are chosen as a suitable sealing material because they are resistant to high temperatures and chemical effects. Combi seals produced by Gökerplast are constructed with ultraviolet resistant Polycarbonate (PC) body, Polyacetal (POM) colored inner part and anchor as can be seen in all our designs.
For further details, please refer to the product specification table.
GP140
GP140 – Combi Seal

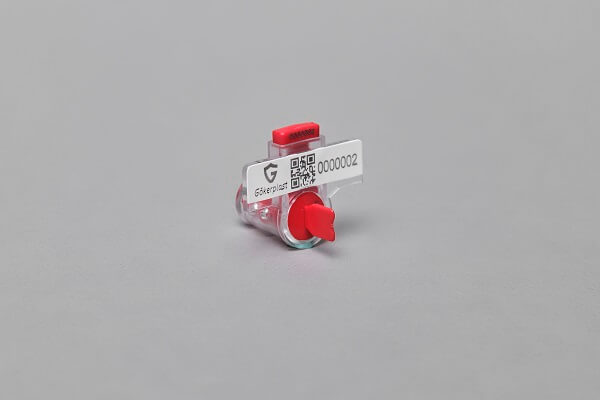

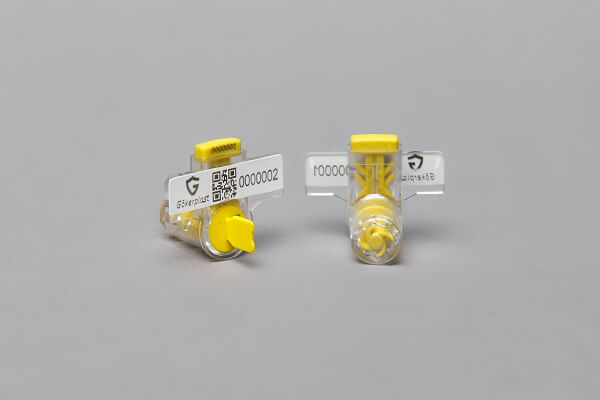

- Made of Polycarbonate (PC) Ultra-Violet resistent body and Polyacethale (POM) colored rotor and anchor lock
- Unique design of anchor-type locking, provides enhanced security and great tamper-proof feature by blocking the colored rotor.

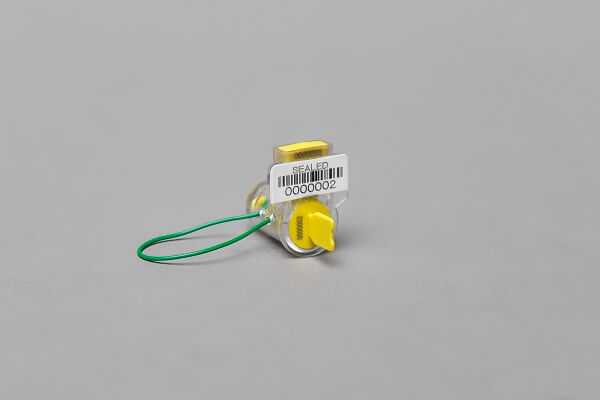

- Stainless steel Ø0,66mm , Galvanised Steel Ø0,66mm and PVC coated Steel Ø0,90mm sealing wire options
- Requested length of sealing wire can be attached to the Twistseal body
- Laser marking company name and 8 digits serial number
- Barcode option for mobile applications (Code128, Int 2/5, etc.)

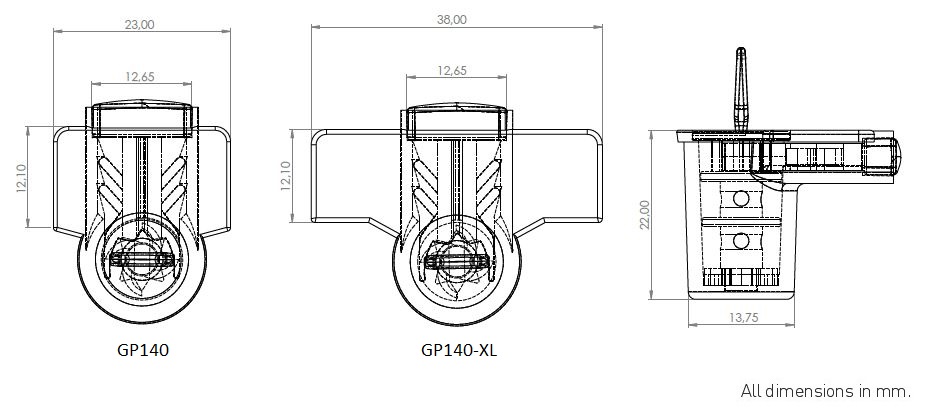

- Optional marking areas , GP140 : 23mm and GP140-XL : 38mm
- Available with a white patch resistent to all solvents for best barcode contrast on transparent body.
- Complies with RoHS (Restriction of Hazardous Substances) Directive (EU) 2015/863 and its subsequent amendments
- Test reports available for ISO 4892 UV resistence, ISO 9227 Corrosion resistence Pull-apart / tensile strength : 40 Kgf Working temperature : -40C / +120C
Usage Areas

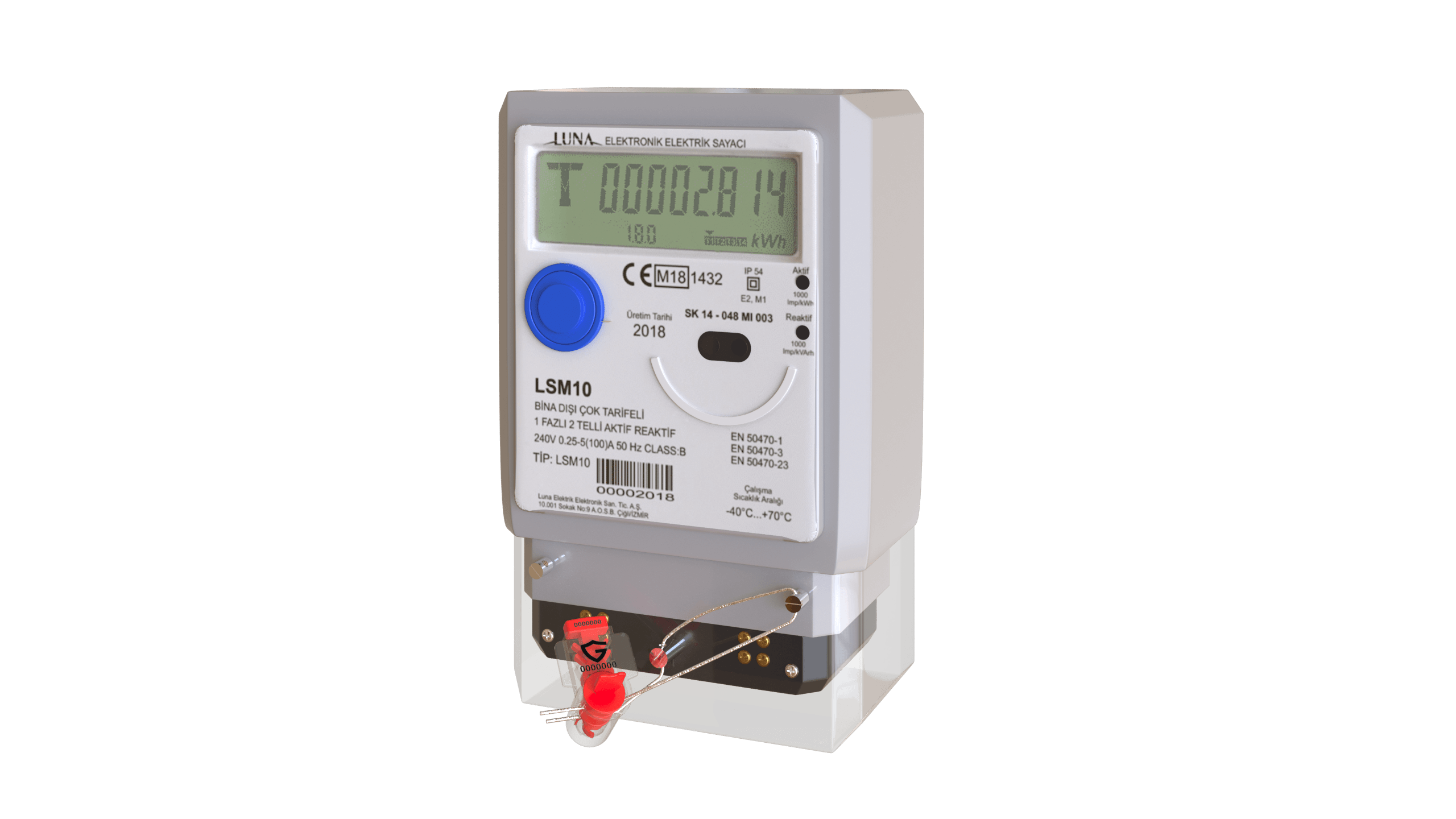

- Auxiliary Counters
- Utility Meters
